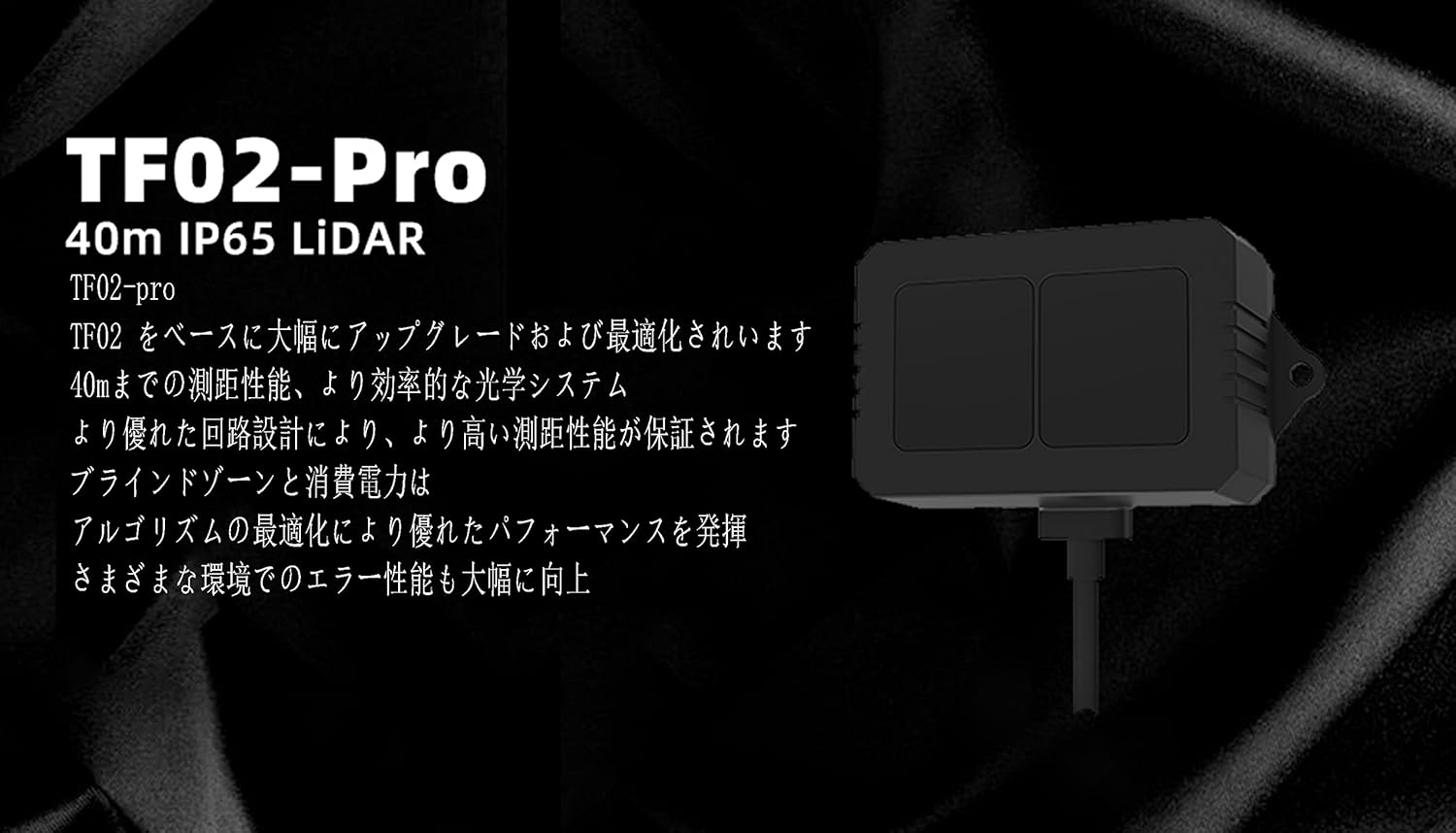

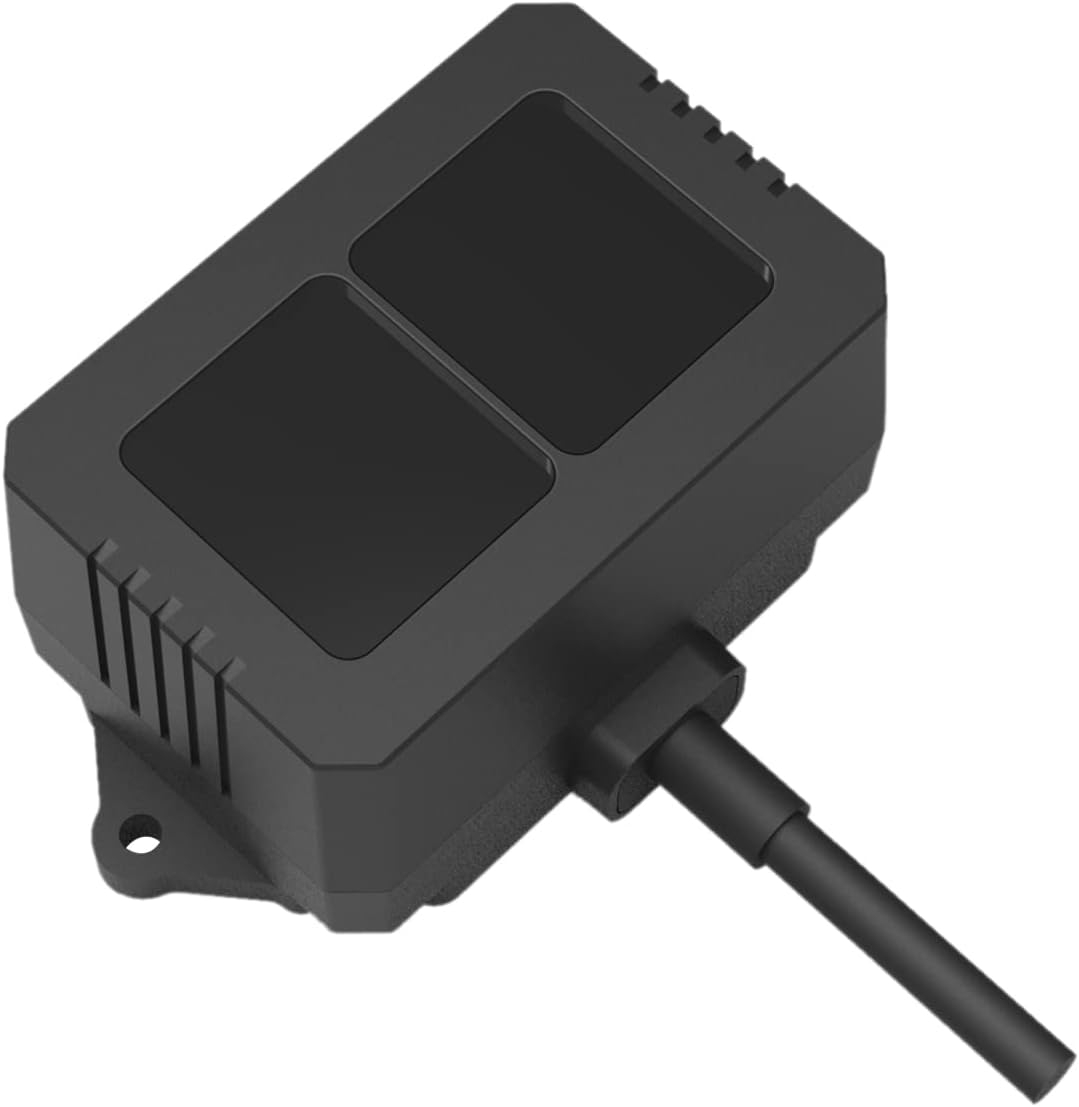

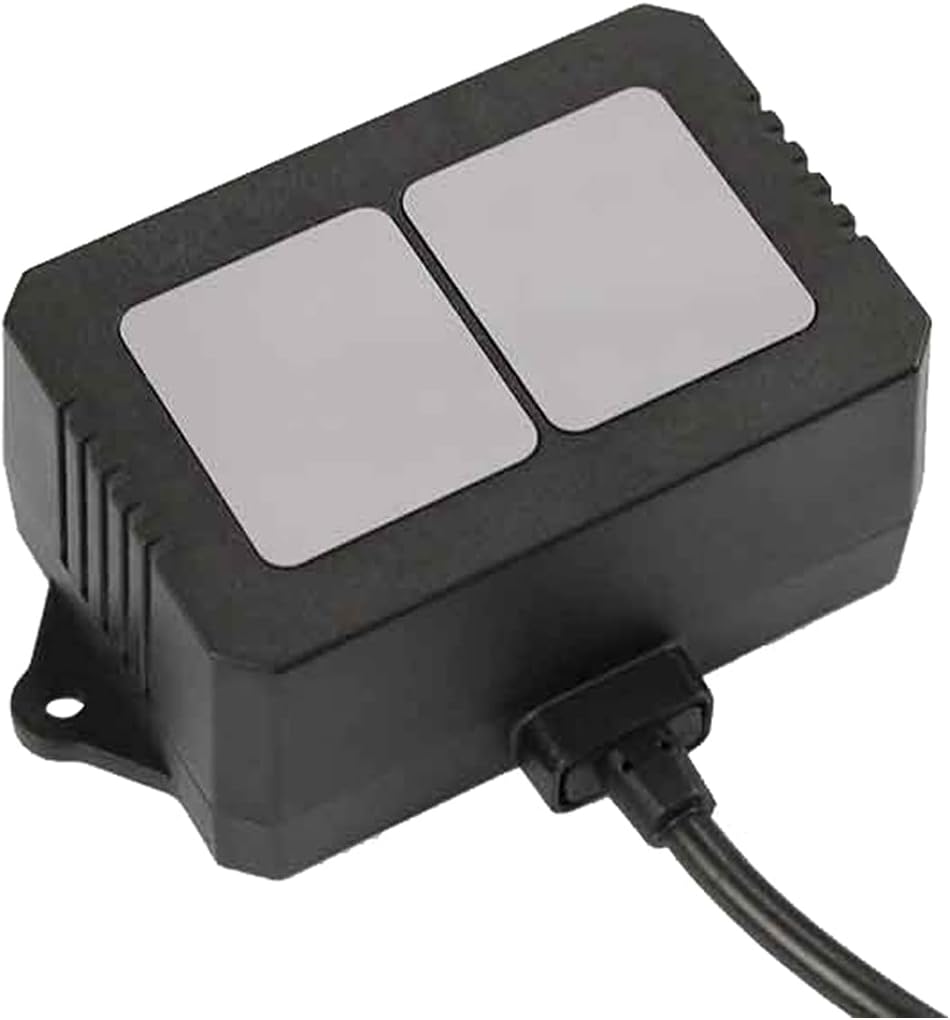

youyeetoo Benewake TF02-Pro Single-Point Ranging Lidar IP65 40m Laser Distance Sensor UART/I2C Solid State LiDAR Sensor for Drone Industrial Sensing Robot

The TF02-Pro is a TOF single-point solid state LIDAR. The TF02-Pro has been significantly upgraded and optimized from the TF02 to achieve a range of up to 40 m. The more efficient optical system and better circuit design ensure higher range performance. It can be widely used in fields such as UAV altitude holding, intelligent transportation, intelligent parking, intelligent agriculture, etc.The TF02-Pro ToF Single-Point Ranging Solid State LiDAR is a newly developed product based on extensive application experience with the TF01. It is a unidirectional laser rangefinder that uses Time of Flight (ToF) technology. It comprises specialized optical and electrical devices that make it stable, highly sensitive, and highly precise.Note: The side length of the detectable range is not equal to the object resolution at the corresponding distance.FEATURESHigh sensitivity, able to measure as far as 40 metersHigh-speed measurement with a maximum sampling frequency of 100HzExcellent anti-ambient light usability (operable under 100kLux ambient light)Protection Grade reaches IP65Anti-corrosive against pesticideSmall in size and lightIf you have any questions, please click youyeetoo to contact us!

• High Performance: Supports various interfaces including UART and I2C to meet broader application scenario requirements.Range of up to 40m with high accuracy of ±5cm (0.1-40m)
• Interference Resistance: Works under 100K lux illumination conditions without interference from temperature, humidity, light, and airflow.Refresh rate up to 1000Hz for real-time distance detection at 100Hz
• Higher Precision: Scanning frequency up to 1000 Hertz (Hz), real-time detection of distance, refresh rate of 100 Hertz (Hz) per second.Small size of 69x41.5x26mm and lightweight at only 50g for easy integration
• High Protection Level: IP65-level design that resists dust and water.IP65 protection from dust and water and operates under 100 Klux ambient light
• Compact and Lightweight: Only 69mmx41.5mmx26mm in size and weighs only 5 grams, suitable for integration into small applications.Multiple interface support including UART and I2C for wider range of applications
